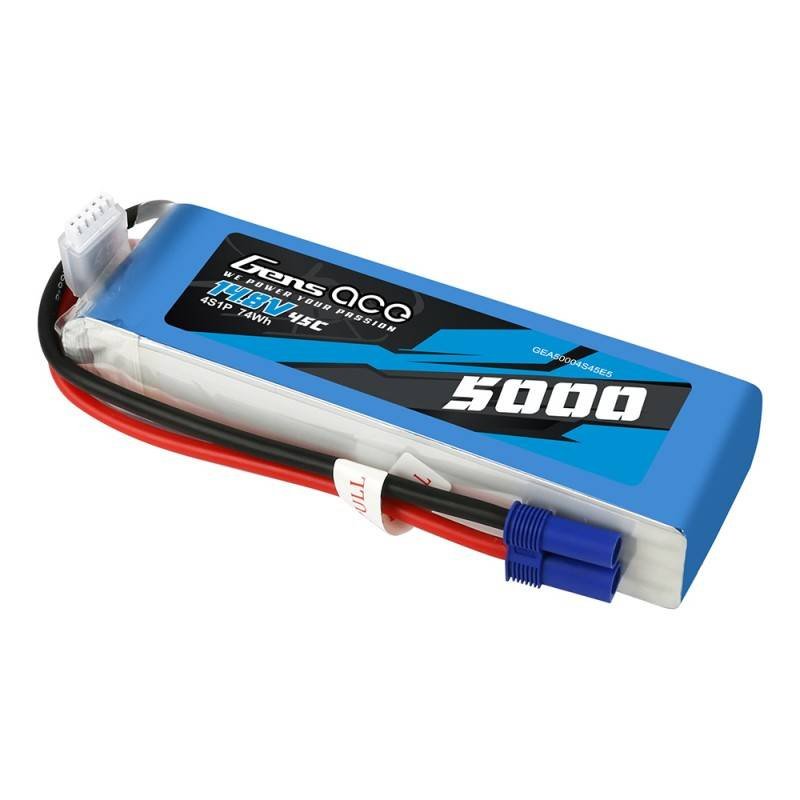

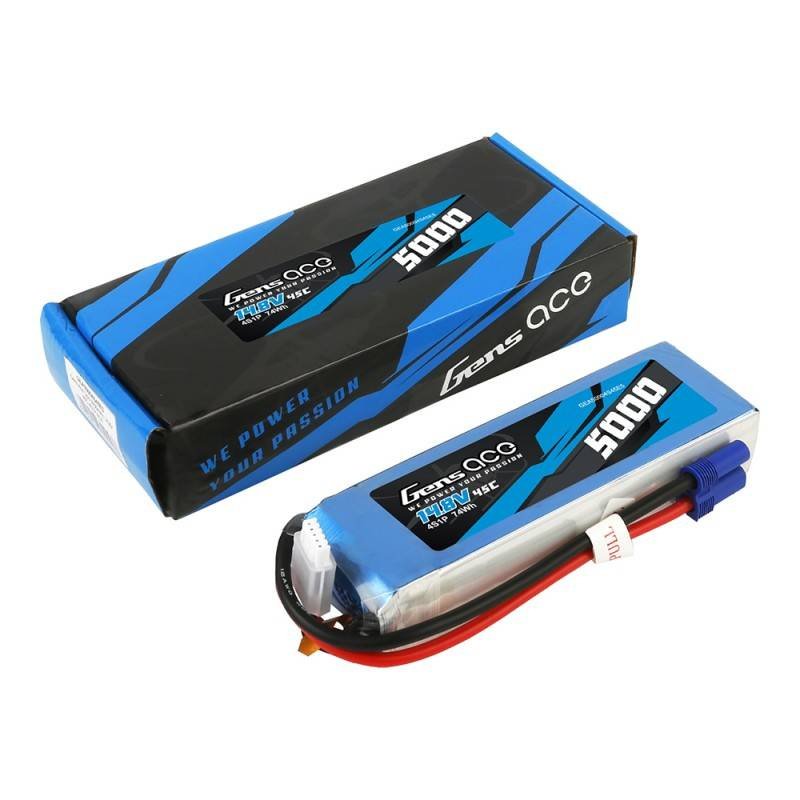

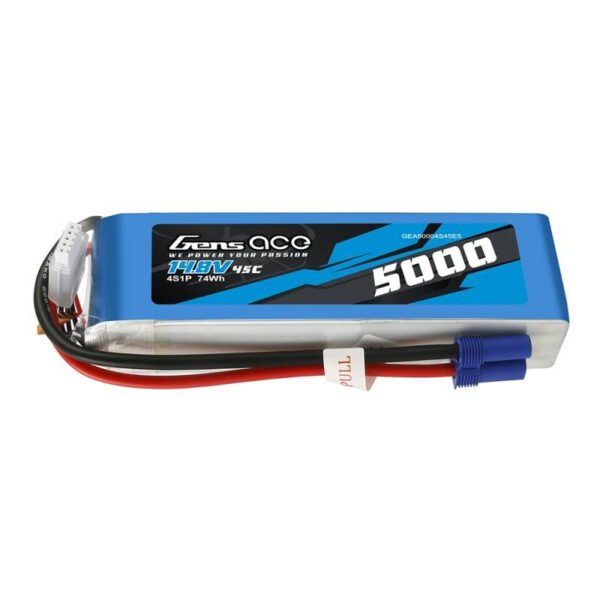

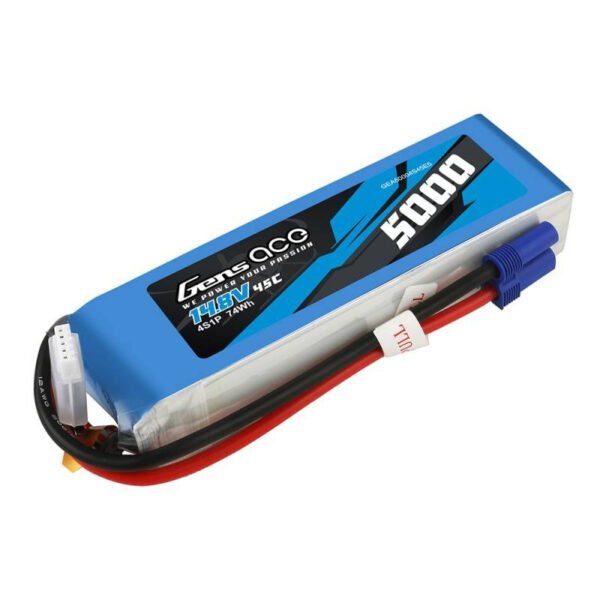

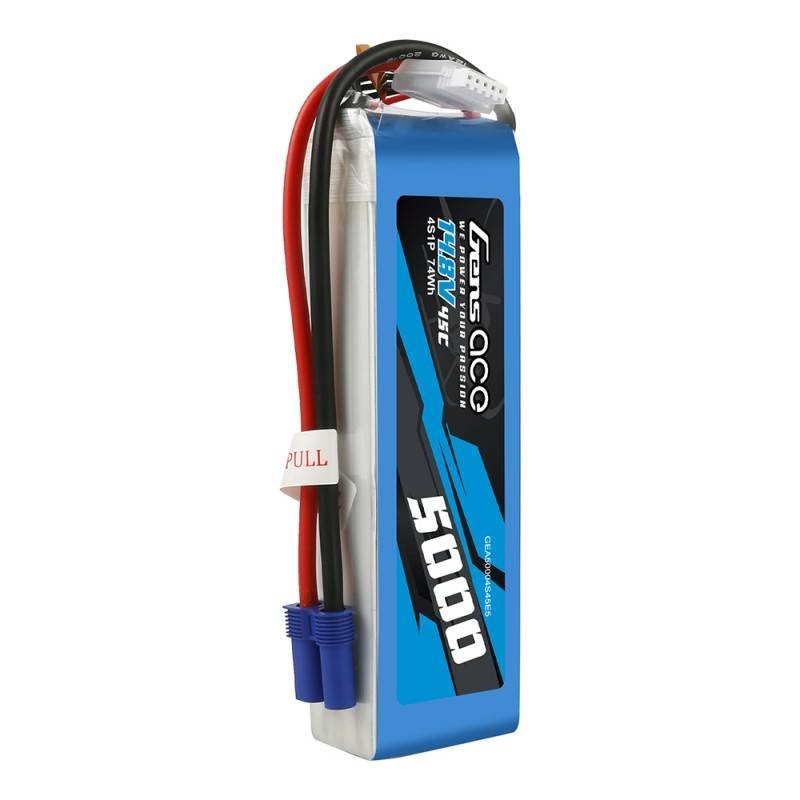

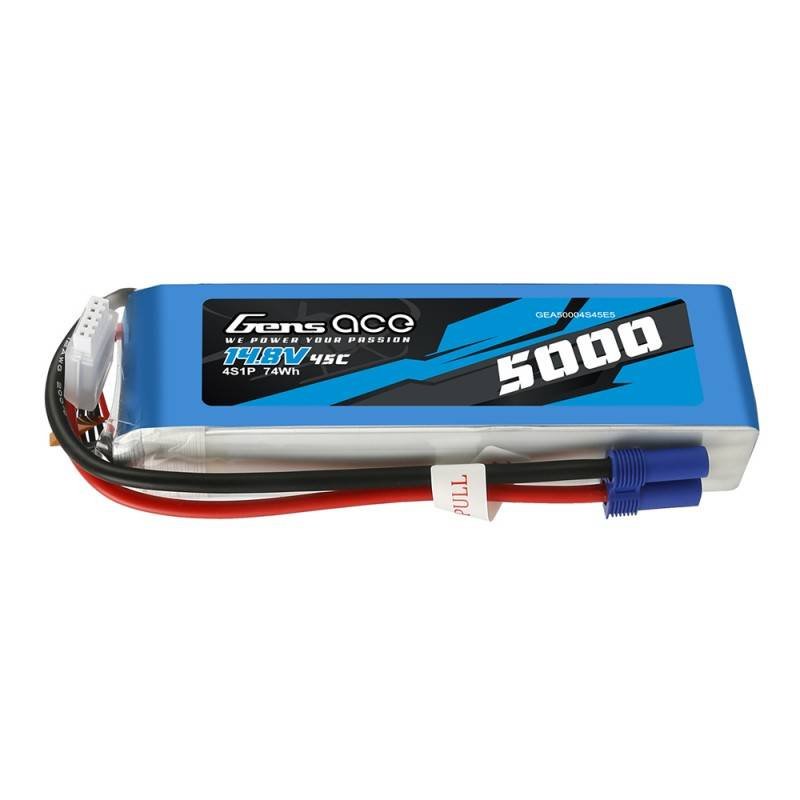

Gens Ace 5000mAh 14.8V 45C 4S1P battery
Gens ace lipo 5000mAh 4S1P battery is suitable for following models: MIKADO LOGO500, ALIGN T-REX550/600, GAUI X5, Outrage 550, Hirobo SDX, FPV etc.
Safety manual
Do not discharge below 3.0V per cell.
Charge only with a microprocessor-based charger in lithium-polymer pack charging mode.
Do not short-circuit the poles, do not puncture, do not expose to direct sunlight, store away from flammable objects, dispose of in specially prepared containers.
| Voltage | 14.8 V |
|---|---|
| Capacity | 5000 mAh |
| Number of cells | 4 |
| Connector type | EC5 |
| Type of balancer | JST-XH |
| Discharge current | 45C |
| Length | 160 mm |
| Width | 45 mm |
| Heigth | 34 mm |
| Weigth | 550 g |
