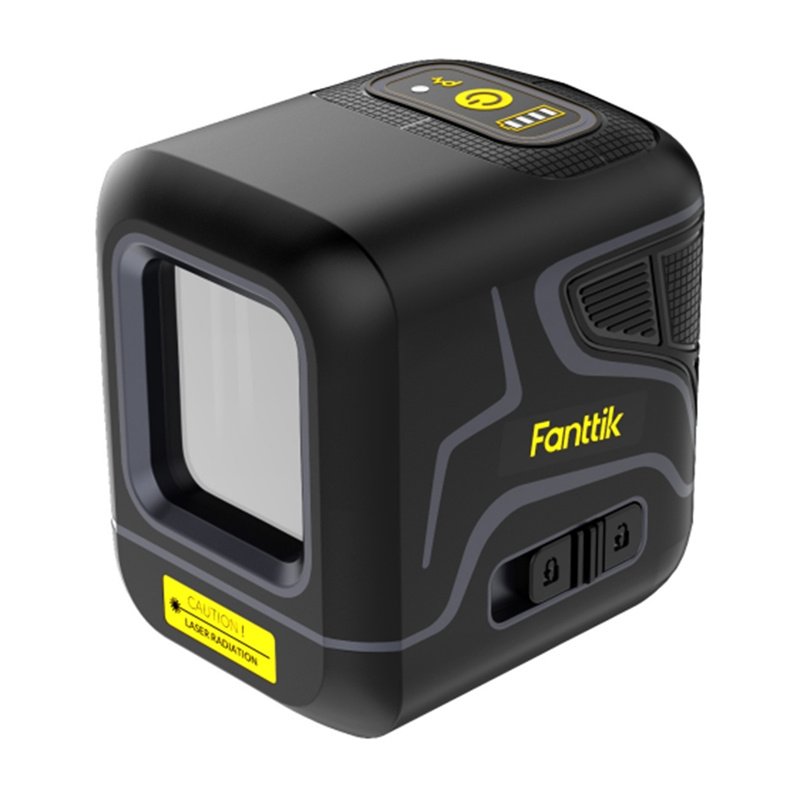

Fanttik D2 laser level
The Fanttik D2 is a compact laser level equipped with a precision Osram laser head that provides a clear and stable beam in the wavelength range of 510-530 nm. The device generates laser beams of less than 1 mW each, meeting Class 2 standards, ensuring safe use while maintaining high quality projection.
Accuracy and working range
The level offers a measurement accuracy of ±3 mm at a distance of 10 m, which allows for precise finishing and installation work. The working range is up to 30 m at an illumination level of 100 lux, and this distance increases to 50 m when combined with the detector, increasing the possibilities for working in spacious rooms and outdoors.
Self-leveling and manual mode functions
The D2 has an automatic self-leveling system with a compensation range of up to ±4°, which quickly corrects the unit’s deviation from level. In addition, a manual mode is available to project the beam at any angle, which is useful for non-standard installation work.
Power supply and durability
The device is powered by a built-in 3.7V lithium-ion battery with a capacity of 2200 mAh. The IP54-rated housing provides dust and splash resistance, so the level will perform well in demanding construction conditions.
Included
- laser level
- bracket
- USB cable
- storage bag
- user manual
| Manufacturer | Fanttik |
|---|---|
| Model | D2 |
| Light source | laser diodes |
| Laser wavelength | 510-530 nm |
| Laser power | <1 mw (each beam), class 2. |
| Working range | 30 m 100 lux; 50 m (with detector) |
| Accuracy | ±3 mm at 10 m |
| Compensation range | ±4° |
| Power supply | Lithium-ion battery 3.7 V |
| Operating temperature | -10°C – 45°C |
| Storage temperature | -20°C – 60°C |
| Humidity | Maximum relative humidity of 80% for temperatures up to 31°C, linearly decreasing to 50% relative humidity at 40°C. |
| Waterproof | IP54 |
