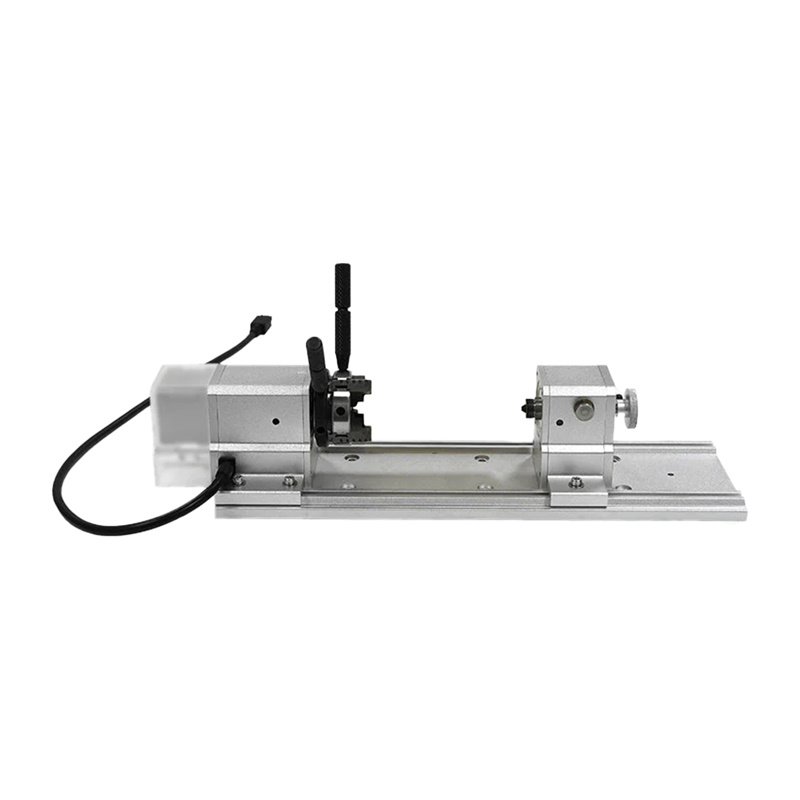

MAKERA Carvera Air 4-Axis Module
The Carvera Air™ 4-axis module (harmonic drive version) significantly expands the milling machine’s capabilities, enabling the machining of cylindrical parts, double-sided projects, and complex 3D shapes. Thanks to simultaneous operation across four axes, you can create realistic 3D models while retaining complete freedom in material selection—from plastic and wood to metal. This solution allows you to take your design to the next level and realize details that were previously difficult or impossible to achieve. The module is designed exclusively for the MAKERA Carvera Air™ milling machine.
Versatility in every project
The use of the 4th axis allows you to machine significantly more complex shapes than in a standard 3-axis configuration. You can easily create rotary parts, details machined from both sides, and complex 3D models. The Carvera Air™ ensures simultaneous operation across four axes, which translates to greater precision and design freedom.
Precision thanks to a harmonic drive
The module is equipped with a harmonic drive, which ensures very high motion accuracy and minimal backlash. The device guarantees smooth and stable operation, which is crucial for projects requiring high repeatability and precise details.
Intelligent and simple configuration
Thanks to integration with Carver Air™ features such as quick tool change, auto-probing, and a home-point-based positioning system, configuring 4-axis operation is just as simple as standard 3-axis machining. Simply prepare your design, and the machine will automatically handle the rest, reducing setup time and minimizing the risk of errors.
User-friendly software and easy operation
Makera CAM simplifies 4-axis programming with intuitive features that allow you to quickly convert 3D models into ready-to-run G-code. This makes even more advanced projects easier to execute. The module is also compatible with popular software such as Fusion 360 and VCarve, giving you complete freedom to work in a familiar environment.
Included
- 4-axis module
- Resin modeling plate for 4th axis x2
- Key for 4th axis lathe chuck x2
| Manufacturer | MAKERA |
|---|---|
| Work area | 9.2 x 20 cm (diameter x length) |
| Weight | 2.5 kg |
| Drive system | Wave gear |
| Motor | Nema17 stepper motor |
| Maximum speed | 2400°/min |
| Rotational precision | 0.01° |
| Materials | Wood, plastic, non-ferrous metals |
| Software | MakeraCAM, Fusion 360, VCarve, etc. |
