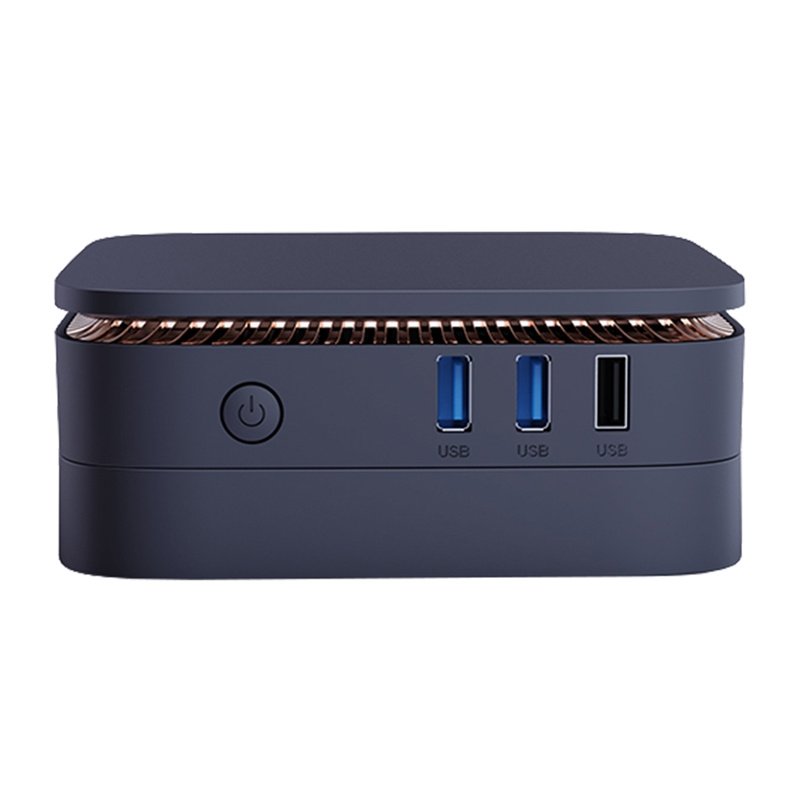

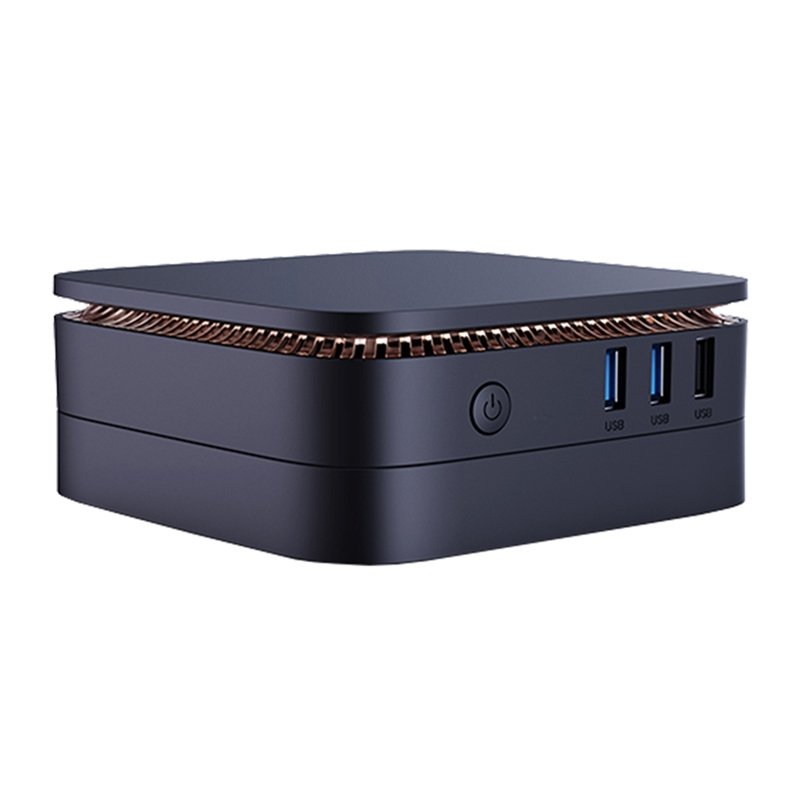

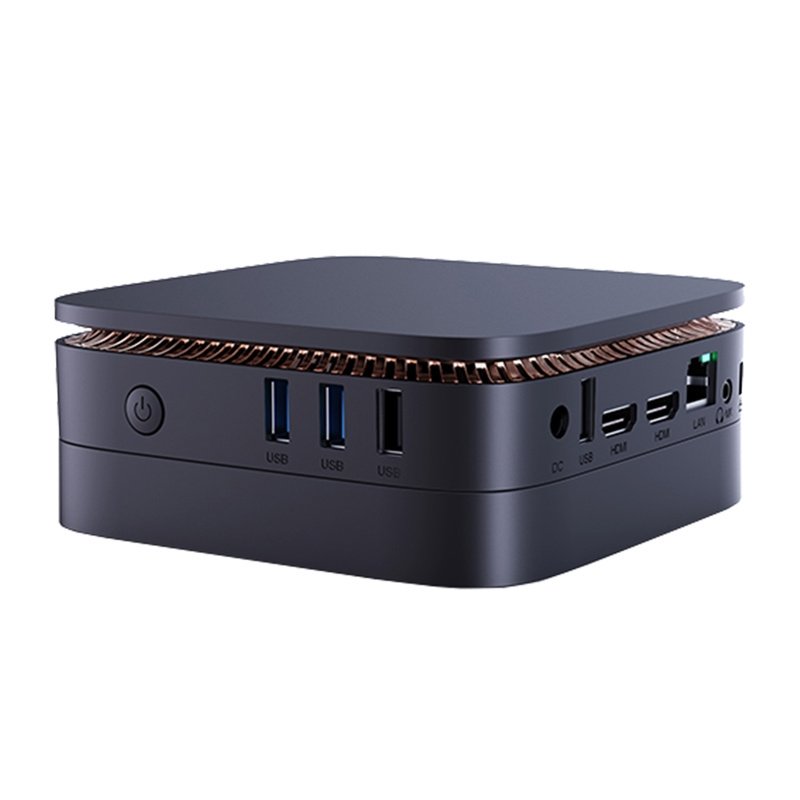

MINI PC AceMagic AK1 PLUS, Intel N97 16GB RAM + 512GB black.
Looking for a computer that fits in the palm of your hand, but still matches the capabilities of large units? The AceMagic AK1 PLUS is a stylish, compact and extremely powerful desktop computer that will work well for office work, education, entertainment and more. Equipped with an Intel® N97 processor up to 3.4 GHz, 16 GB RAM and a 512 GB SSD, it offers fast performance with low power consumption (15 W). Dual-screen support, expandable memory and disk, Wi-Fi 6 and Gigabit Ethernet connectivity, and a rugged chassis with VESA mount make it an excellent choice for demanding users.
Low power consumption, high performance
The Intel® N97 processor based on Intel 7 technology offers 4 cores and 4 threads, resulting in a perfect balance between performance and power consumption. With only 15 watts of power consumption, the AceMagic AK1 PLUS is ideal for those looking for an energy-efficient yet reliable PC for everyday tasks.
Ready for more – expand it your way

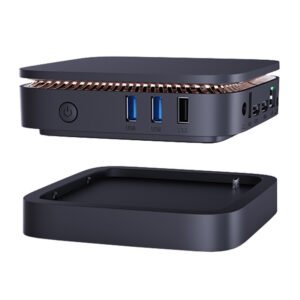

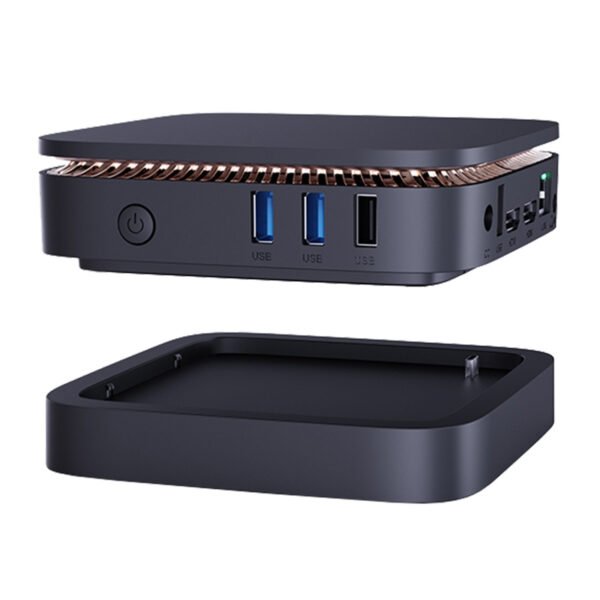

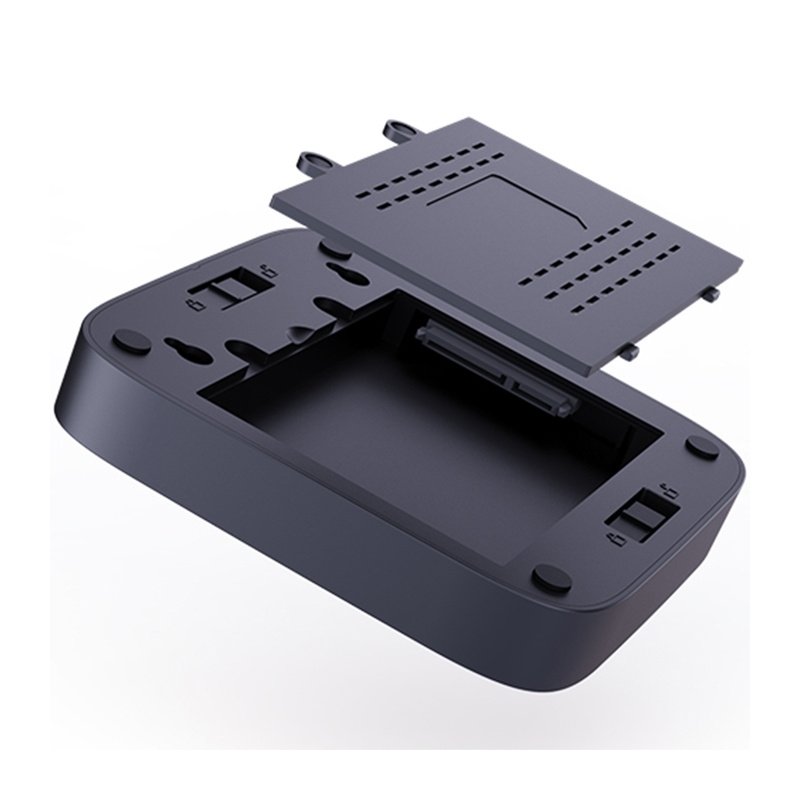

This mini PC offers expandable RAM up to 16GB (DDR4, up to 3200MT/s) and support for M.2 2280 NVMe/NGFF drives of up to 2TB. What’s more, the unique dual-layer design allows the installation of an additional 2.5″ HDD or SSD, making it an excellent choice for those who need more space for their data.
Versatility in any space

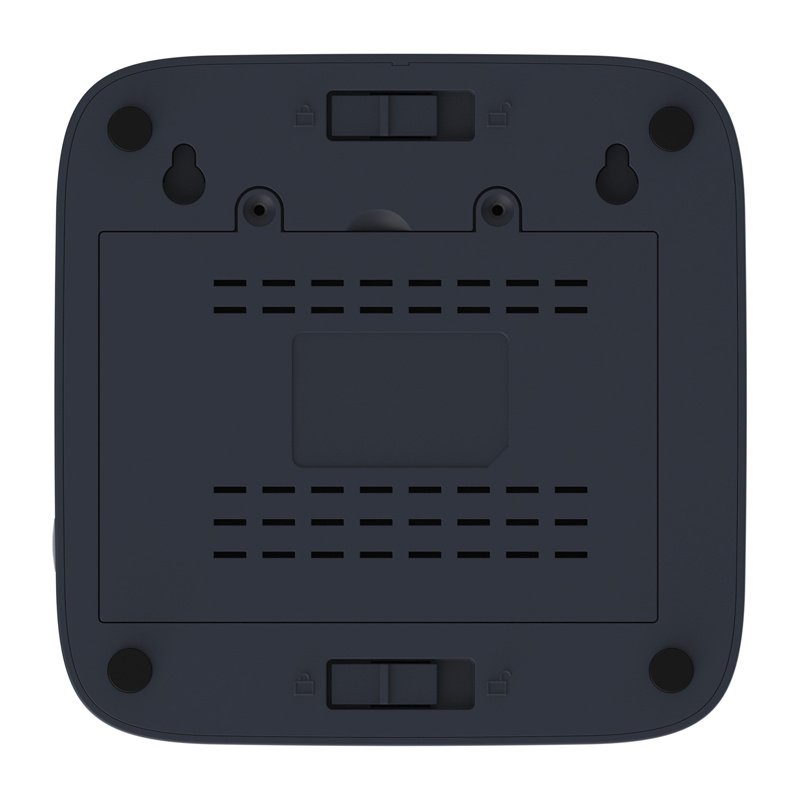

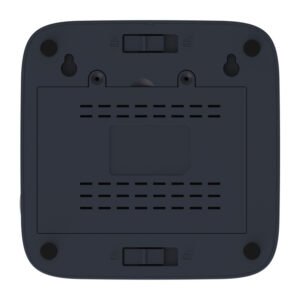

With dual screen output, the AceMagic AK1 PLUS allows you to work comfortably on two monitors at the same time. This is ideal for office tasks, presentations or entertainment. In turn, the VESA connector allows you to mount the device directly behind your monitor, saving space on your desk.
Fast connectivity and thoughtful design

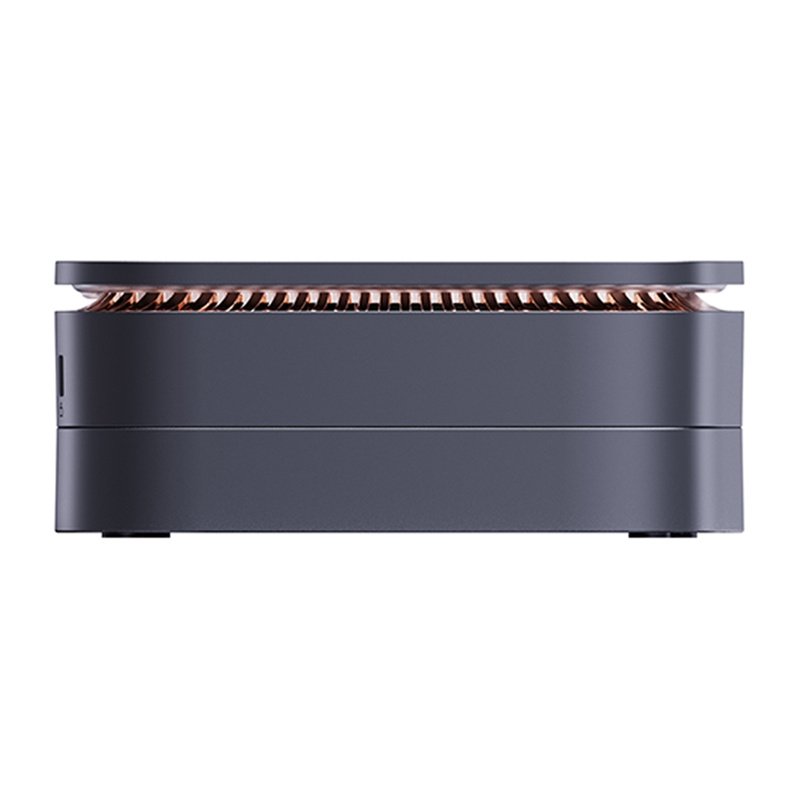

The computer offers modern connectivity options, including Wi-Fi 5 / Wi-Fi 6 (depending on configuration), Ethernet port (1000M). Its sleek, modern chassis will fit perfectly into any interior, and improves ventilation and component accessibility.
Included
- AK1 PLUS mini PC
- VESA mount
- user manual
| Manufacturer | AceMagic |
|---|---|
| Model | AK1 PLUS |
| Color | Black |
| Dimensions | 128 x 128 x 51.5 mm |
| Housing material | Plastic |
| Weight | 386 g |
| DDR4 SO-DIMM memory | Installed 8 GB, maximum 16 GB |
| RTC | Real-time clock support, auto power-on can be set in BIOS |
| Automatic power-up | Yes, supported in BIOS |
| TPM | TPM 2.0 support (integrated in CPU) |
| Dual screen display | Support for 2 × HDMI |
| LED | Built-in (blue LED – device on) |
| Operating system | None |
| Operating temperature | 0-40°C |
| Storage temperature | -20-60°C |
| Humidity | 90% at 40°C (non-condensing) |
| Input | 100-240 V, 50/60 Hz |
| Output: 12 V / 2.5 A |
Processor (CPU)
| Platform | Intel Alder Lake-N N95 |
|---|---|
| Base clocking | 1.7 GHz |
| Maximum clocking | 3.40 GHz |
| Power consumption | 15 W |
Storage
| eMMC | Supported |
|---|---|
| SSD | M.2 2280 NVMe/NGFF, max. 2 TB |
| 2.5″ HDD/SSD | Supported, max. 2 TB |
| TF card | Not supported |
Networking
| Wi-Fi | Wi-Fi 5 / Wi-Fi 6 (default Wi-Fi 5) |
|---|---|
| Wi-Fi protocol | PCIE |
| Bluetooth | Bluetooth 4.2 / 5.2 |
| Bluetooth protocol | USB 2.0 |
| 3G | None |
| 4G | None |
| Ethernet | LAN1 – 10M/100M/1000M (automatic adjustment) |

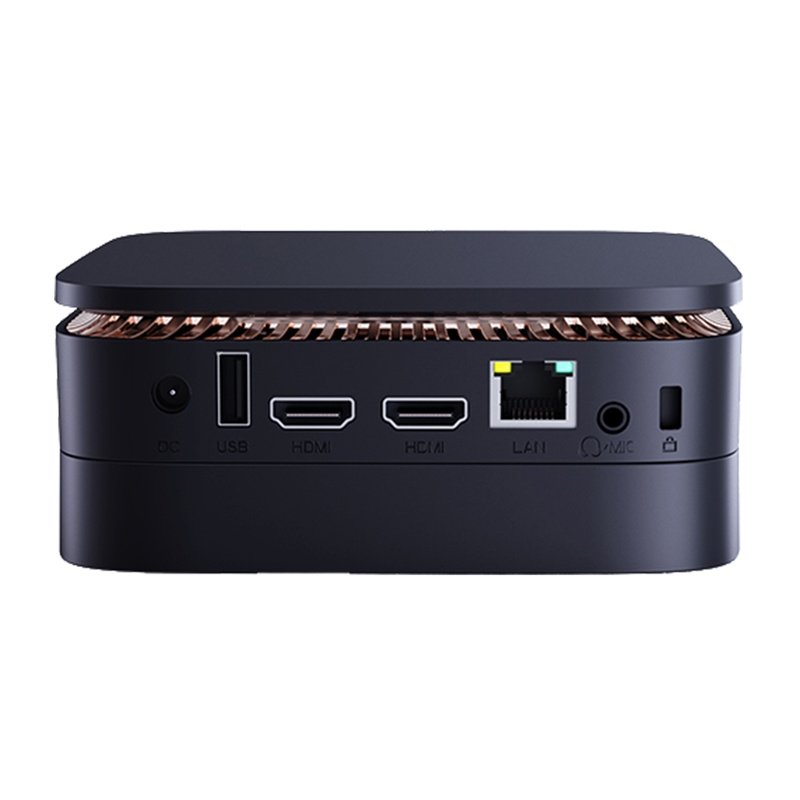

Ports
| USB 2.0 | 2 × USB 2.0 Type A |
|---|---|
| USB 3.2 | 2 × USB 3.2 type A |
| HDMI | 2 × HDMI 2.1 type A |
| RJ45 | 1 × RJ45 Gigabit Ethernet |
| Power supply | 1 × Power input |
| DC IN | DC socket 5.5/2.1 mm ×1 |
| Audio | 1 × 3.5 mm jack socket (single port input/output) |
| Antenna 1 | FPC – 2.4 GHz Wi-Fi + Bluetooth |
| Antenna 2 | FPC – Wi-Fi 5.0 GHz |
