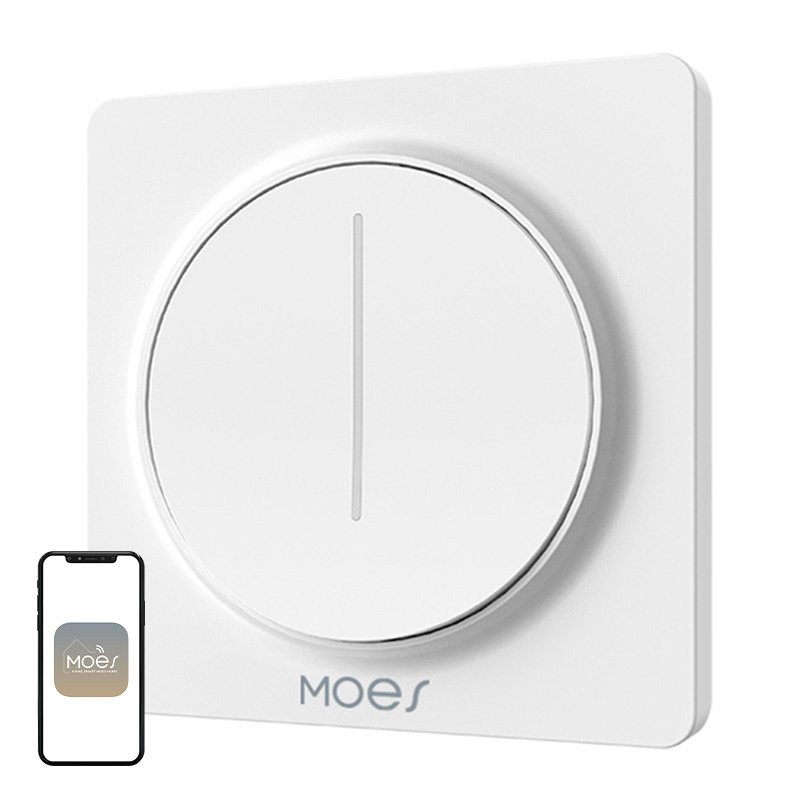

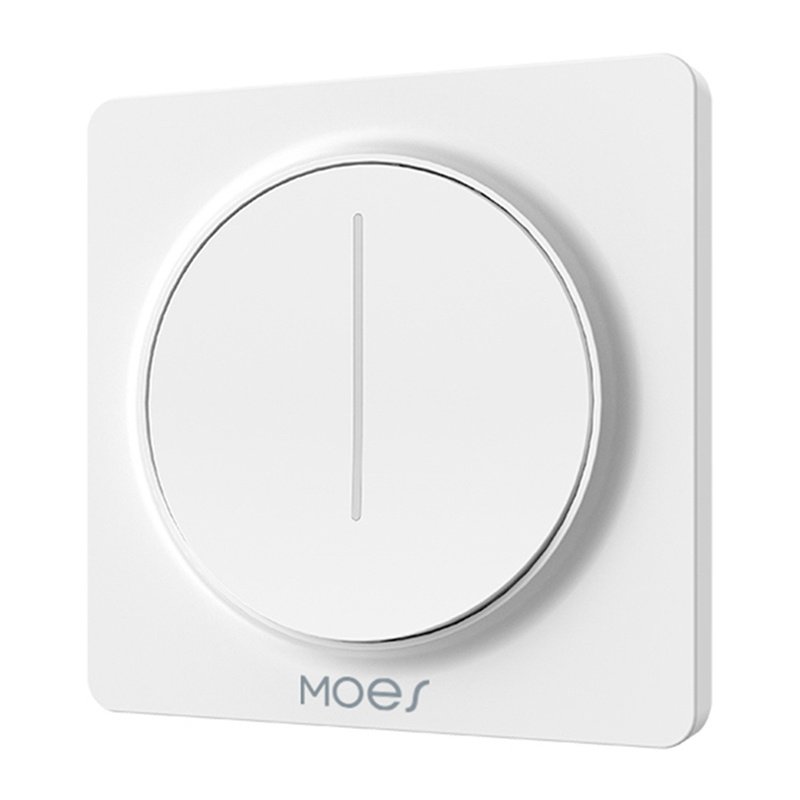

MOES ZS-SY-EUD-WH ZigBee Dimmer (White)
The MOES ZS-SY-EUD-WH is a ZigBee 3.0 dimmer with a touch panel that allows for smooth brightness adjustment from 0–100%. Thanks to compatibility with the Tuya Smart and Smart Life apps, as well as integration with Amazon Alexa and Google Assistant, you can control your lighting remotely or by voice. The device remembers the last brightness level after being turned off, which enhances the convenience of daily use. Compatibility with loads up to 300 W (traditional bulbs) and 220 W (LED/CFL) makes it suitable for various home installations.
Precise touch control
The dimmer is equipped with a touch panel that allows for intuitive brightness control by swiping your finger. Adjustment is smooth, allowing you to precisely tailor the lighting to your current needs—from soft light to full brightness. An additional mechanical button allows for quick on/off switching.
Automation and lighting scenes
The device allows you to create schedules where the light turns on and off at specific times with a selected brightness level, e.g., 80% in the morning or 20% in the evening. Pre-set scene modes are also available, such as sleep, reading, or party, which make it easy to quickly adjust the atmosphere in the room.
Remote control and smart home integration
Thanks to ZigBee 3.0 communication (Tuya gateway required), the dimmer can be part of a larger smart home system. It allows for remote lighting control via an app and the creation of automations with other devices, such as turning on the light when a door opens. The sharing feature allows multiple users to manage the device.
Clear backlighting and convenient operation
The dimmer features an LED indicator that shows the device’s status and makes it easy to locate in the dark. Users can customize the backlight settings in the app—turn it on, off, or set it to location mode. The app interface also allows for precise brightness adjustment using a slider.
Safe design and reliability
The housing is made of fire-resistant materials (V0 class), and the design ensures effective heat dissipation, increasing safety during operation under load. Stable performance and durable construction ensure the device will perform well in daily use for a long time.
| Manufacturer | Moes |
|---|---|
| Model | ZS-SY-EUD-WH |
| Color | white |
| Input voltage | 220 V AC 50 Hz |
| Inductive load (LED/CFL) | max. 220 W |
| Resistive load (incandescent) | max. 300 W |
| Number of channels | 1 |
| Standby power consumption | ≤0.5 W |
| Operating temperature | -10°C ~ 45°C |
| Operating humidity | <90% |
| Frequency band | 2.400–2.483 GHz |
| Maximum RF transmission power | < +10 dBm |
