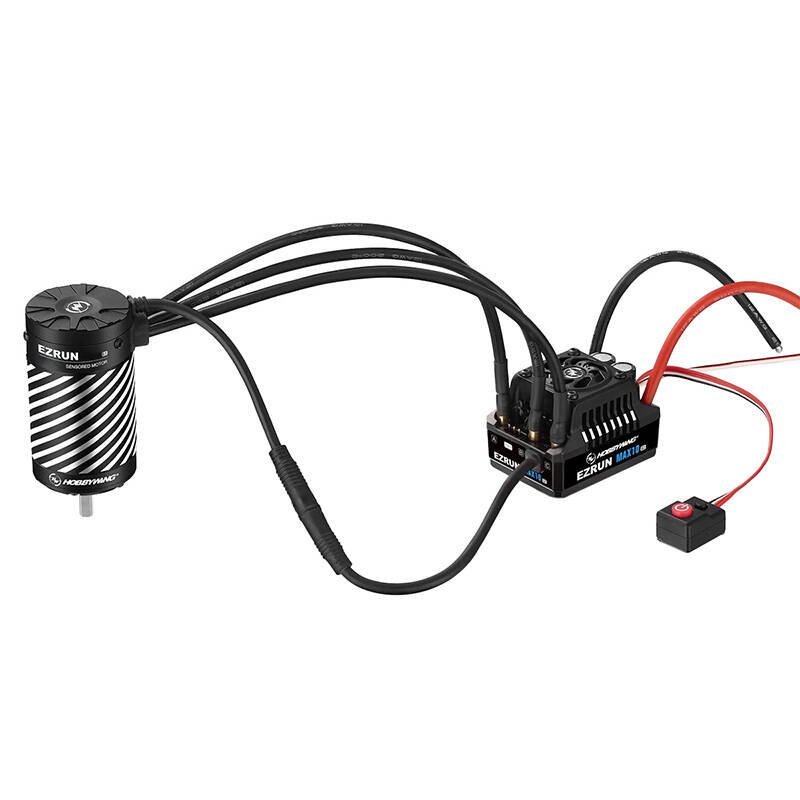

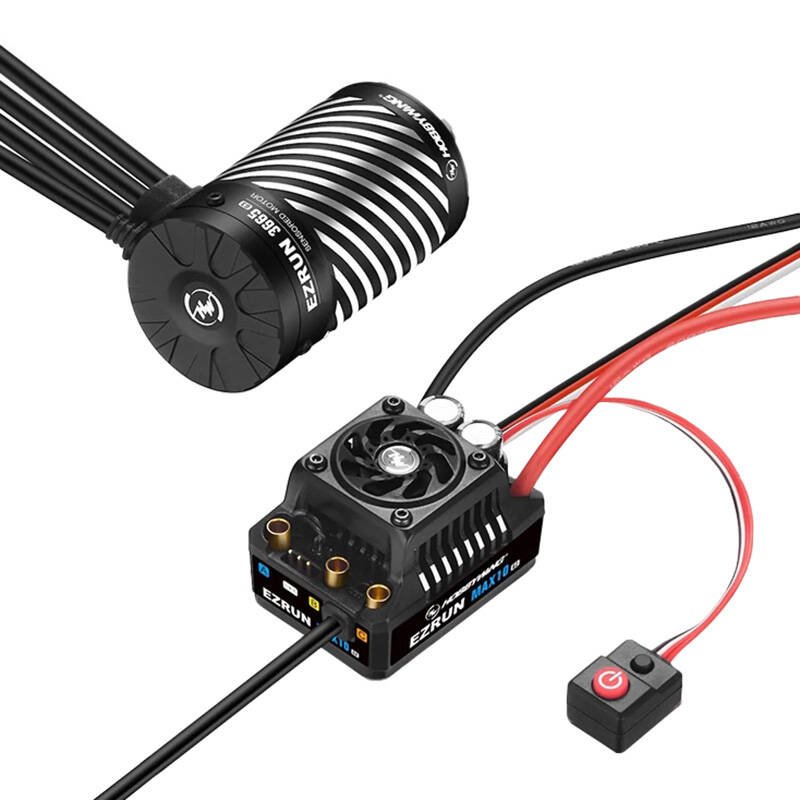

EZRUN MAX10 G2 140A/3665SD 3200kv G3 Power Set
The EZRUN MAX10 G2 power set includes the EZRUN 3665SD 3200 KV G3 motor and the EZRUN MAX10 G2 140A ESC (Electronic Speed Controller). It’s an excellent choice for remote-controlled vehicle enthusiasts, perfect for racing and more. The innovative motor features a 4-pole design, and the compatible ESC is programmable and waterproof, making it suitable for challenging conditions. This set is designed for use in RC cars.
In the box
- EZRUN 3665SD 3200 KV G3 Motor
- EZRUN MAX10 G2 140A ESC
Motor
| Brand | Hobbywing |
|---|---|
| Model | HW30402607 |
| Motor Type | AC |
| RPM/V | 3200KV |
| Li-Po (Cells) | 2-3 |
| Open Circuit Current | 7.1 A |
| Number of Poles | 4 |
| Diameter | 37 mm |
| Motor Housing Length | 65.8 mm |
| Shaft Diameter | 5 mm |
| Free Shaft Length | 16.5 mm |
| Weight | 304.4 g |
| Synchronization | 0° |
ESC (Electronic Speed Controller)
| Brand | Hobbywing |
|---|---|
| Model | HW30102603 |
| Application | RC Cars |
| Type | AC |
| Continuous Current | 140 A |
| Peak Current | 880 A |
| Li-Po (Cells) | 2-4 |
| BEC Voltage | 6-7.4 V |
| BEC Current (Max) | 5 A |
| Dimensions | 53 x 39.5 x 37.2 mm |
| Weight | 120 g |
| Control | Bidirectional |
| Sensor Ports | Yes |
| Programmable | Yes |
| Waterproof | Yes |
