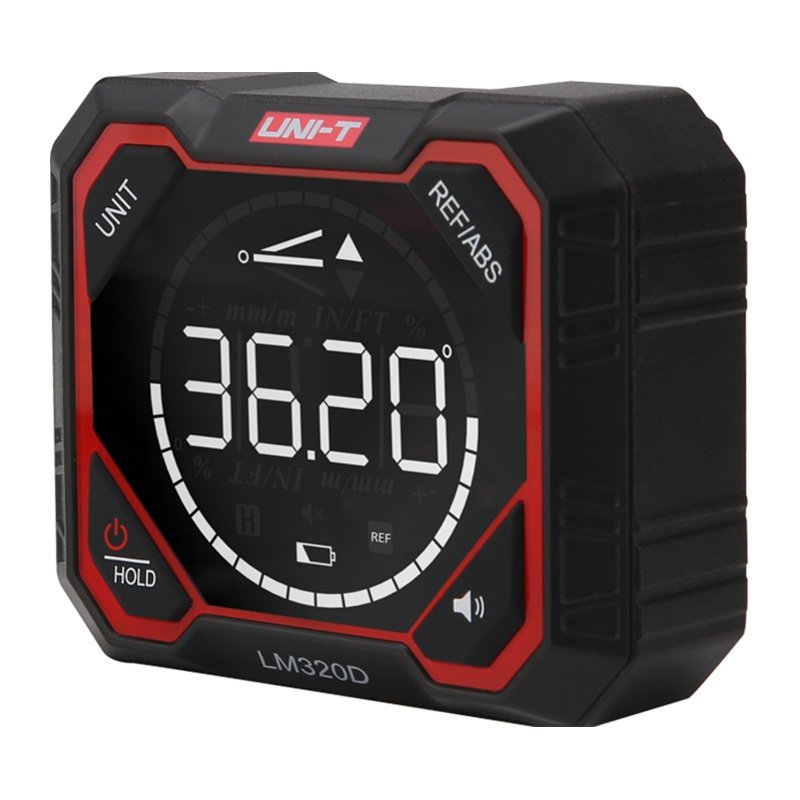

Uni-T LM320D Protractor
The Uni-T LM320D angle finder is a compact tool for precise measurements in assembly, construction, and workshop applications. Its lightweight design with an aluminum frame and easy-to-read display ensure high convenience for everyday use. The LM320D model offers high-precision measurement within a 4×90° range, allowing for perfect alignment of components. Support for multiple units and relative and absolute measurement modes enhance the device’s versatility. The magnetic base ensures stable mounting, allowing for comfortable work in any conditions. The package is rounded out by a high-capacity battery and a backlit screen, improving usability in low-light environments.
Included
- Angle finder
- USB-C cable
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | LM320D |
| Type | Angle finder |
| Measurement range | 4 × 90° |
| Resolution | ±0.05° |
| Accuracy | ±0.2° |
| Repeatability | ±0.2° |
| Units | °, %, mm/m, in/ft |
| Operating time | Up to 14 h |
| Features | Relative and absolute measurement, Data Hold, automatic screen rotation, backlight |
| Base | Double-sided magnetic |
| Power supply | 1000 mAh rechargeable battery |
| Dimensions | 83.5 x 70 x 35.5 mm |
| Weight | 180 g |
| Certifications | CE, RoHS |
