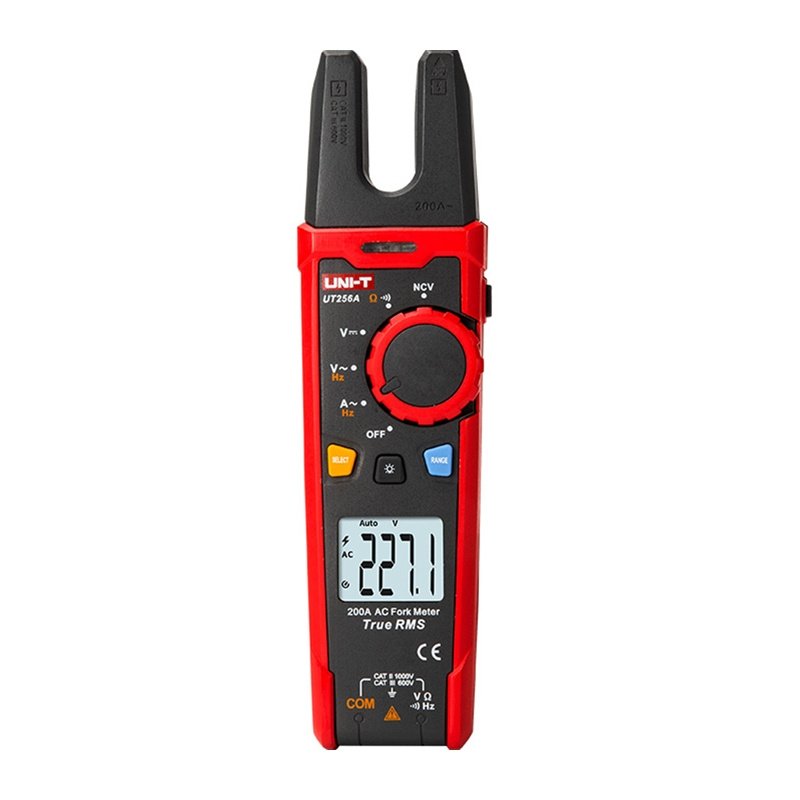

Uni-T UT256A Meter
The Uni-T UT256A is a precision True RMS clamp meter that allows for quick and convenient current measurement without the need for traditional clamp jaws. Its distinctive design allows for measurement simply by placing the wire inside the open clamp, which simplifies the process and eliminates the risk of mechanical component failure. This model performs well during everyday electrical measurements when ease of use, reliability, and clear readings are essential.
Wide measurement range and user-friendly operation
The UT256A model allows for the measurement of AC current up to 200 A, AC/DC voltage up to 1000 V, resistance up to 60 MΩ, and frequency from 10 Hz to 10 kHz. A maximum reading of 6000, automatic range switching, and True RMS technology enhance user convenience and simplify daily diagnostics. Additionally, the device is equipped with an NCV function, allowing for non-contact voltage detection.
Practical design for everyday use
The meter offers a Data Hold function, auto-off, continuity buzzer, low battery indicator, input protection, and LCD backlight, which improves comfort during use in various conditions. The device weighs 248 g and measures 217 × 58.8 × 38.5 mm, making it comfortable to use and easy to carry. The model meets CAT II 1000V and CAT III 600V safety requirements.
Included
- Clamp meter
- Battery x2
- Test leads
- Carrying case
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT256A |
| Type | True RMS clamp meter |
| AC current | 200A ±(1.8%+5) |
| AC Voltage | 1000V ±(1.2%+3) |
| DC Voltage | 1000V ±(0.8%+3) |
| Resistance | 60MΩ ±(1%+2) |
| Frequency | 10Hz ~ 10kHz ±(0.1%+5) |
| Maximum reading | 6000 |
| Functions | True RMS, NCV, continuity test, Data Hold, auto-range, LCD backlight, auto-off, low battery indicator |
| Power supply | 2x 1.5V batteries (LR6) |
| Display | 35 x 26 mm |
| Dimensions | 217 x 58.8 x 38.5 mm |
| Weight | 248 g |
| Safety | CAT II 1000V / CAT III 600V |
| Certifications | CE, UKCA, cETLus |
