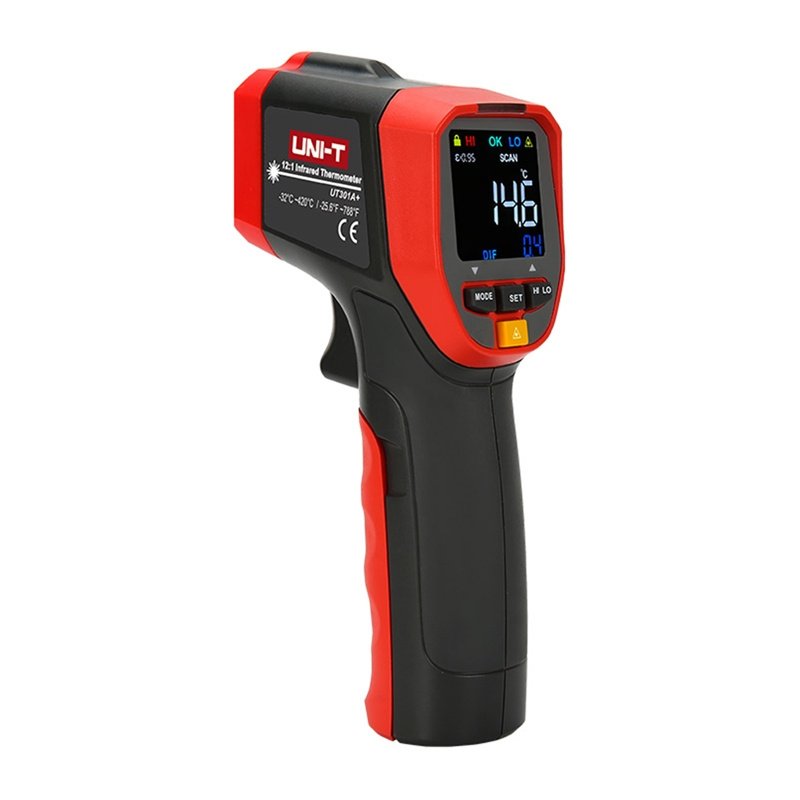

Uni-T UT301A+ infrared thermometer
The Uni-T UT301A+ is an infrared thermometer designed for non-contact temperature measurement in the range from -32°C to 420°C. The device offers an accuracy of ±1.5°C and a response time of up to 250 ms, allowing for quick detection of malfunctions in equipment and systems. A D:S ratio of 12:1 and adjustable emissivity in the range of 0.1–1.0 allow for better measurement adaptation to various surfaces, while the color EBTN display improves the readability of results when working on electrical installations, HVAC systems, or vehicle diagnostics.
Features to simplify daily work
The UT301A+ model allows you to save 5 sets of emissivity settings and offers audible and visual alarms for excessively high or low temperatures. Users also have access to MAX, MIN, AVG, DIFF, and Hold modes, as well as a measurement lock function, which facilitate the analysis of results and monitoring of temperature changes. Its compact design weighing 204 g, resistance to drops from a height of 1 meter, and the ability to mount it on a tripod make the device well-suited for daily service and field work.
Included
- Thermometer
- 9V battery
- Carrying case
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT301A+ |
| Product type | Infrared thermometer |
| Temperature range (°C) | -32…420°C |
| Accuracy (°C) | pm1.5°C or pm1.5% (>0°C), pm(1.5°C + 0.1°C/°C) (le0°C) |
| Repeatability (°C) | 0.7°C or 0.7% |
| Temperature range (°F) | -25.6…788°F |
| Accuracy (°F) | pm3.0°F or pm1.5% (>32°F), pm(3.0°F + 0.1°F/°F) (le32°F) |
| Repeatability (°F) | 1.5°F or 0.1°F/°F |
| D:S ratio | 12:1 |
| Response time | le250 ms |
| Emissivity | 0.1–1.0 |
| Stored emissivity settings | 5 sets |
| Spectral response | 8–14 μm |
| Laser power | <1 mW |
| Display | Color EBTN |
| Functions | High and low alarm, Data Hold, unit selection, measurement lock, backlight, tripod socket, auto power off, battery indicator |
| Measurement modes | MAX / MIN / AVG / DIFF / Hold |
| Operating temperature | 0…50°C (32…122°F) |
| Storage temperature | -20…60°C (-4…140°F) |
| Humidity | <90% RH non-condensing |
| Drop resistance | 1 m |
| Power supply | 9V battery |
| Display dimensions | 30 × 30 mm |
| Weight | 204 g |
| Dimensions | 160 × 74 × 48 mm |
| Color | Red and gray |
| Certifications | CE, UKCA |
