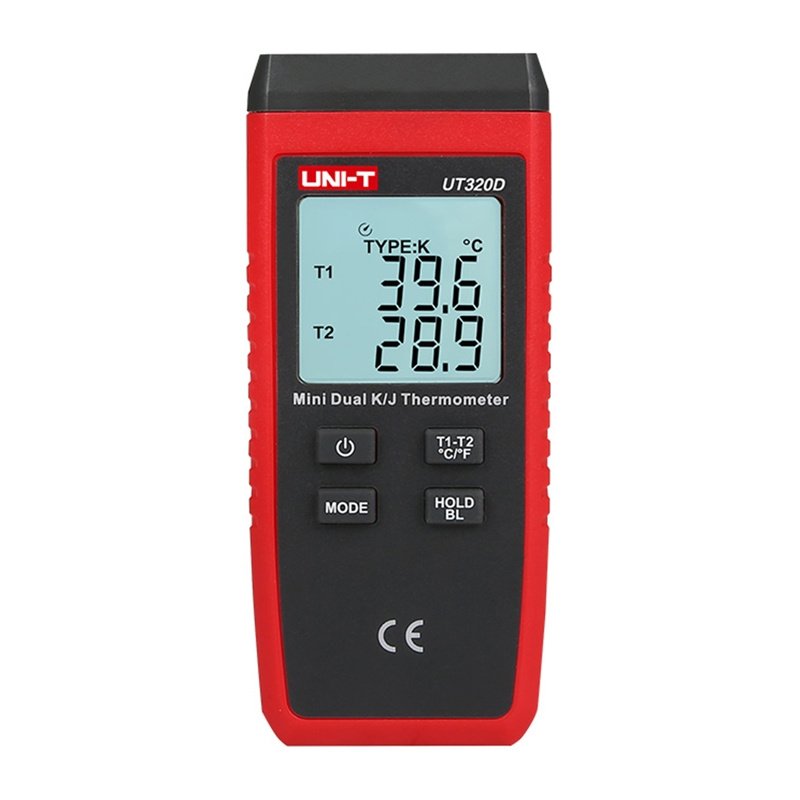

Uni-T UT320D Contact Thermometer
The Uni-T UT320D contact thermometer is a compact and precise tool for measuring temperatures in a wide range from -50°C to 1300°C (Type K probe) and up to 1200°C (Type J probe), making it ideal for both service work and industrial applications. This model features a dual measurement channel, allowing not only for simultaneous temperature measurement at two points but also for calculating the difference between them (T1–T2), which significantly simplifies diagnostics. The device features high accuracy of ±(0.5% + 1), fast sampling at 4 times per second, and a clear backlit display, making measurements convenient and reliable even in challenging conditions.
Features that make work easier
The dual display mode on the UT320D allows you to analyze two temperature readings simultaneously, which reduces measurement time and eliminates the need for multiple devices. The temperature difference function (T1–T2) provides a quick overview of changes and deviations, which is particularly useful when testing heating systems or equipment. Additional features, such as recording maximum, minimum, and average values, “data hold” mode, and °C/°F unit selection, enhance measurement control and allow for better analysis of results.
Thoughtful design and ease of use
The housing, which can withstand drops from heights of up to 1 meter, ensures the thermometer withstands daily use in the field. Its compact size and light weight (60 g) ensure comfortable use even over extended periods. Automatic shut-off conserves battery life, and the battery level indicator prevents sudden discharge. Thanks to compatibility with Type K and J probes, users have greater flexibility in selecting the appropriate sensors for specific applications.
Included in the set
- Uni-T UT320D thermometer
- Type K temperature probe
- Set of batteries
- User manual
- Manufacturer’s packaging
| Manufacturer | Uni-T |
|---|---|
| Model | UT320D |
| Measurement range (Type K) | -50°C to 1300°C |
| Measurement range (Type J) | -50°C to 1200°C |
| Accuracy | ±(0.5% + 1) |
| Number of channels | 2 (simultaneous measurement) |
| Temperature difference measurement (T1–T2) | Yes |
| Sampling rate | 4 times/s |
| Display | LCD (37.4 × 36.4 mm) |
| Functions | MAX/MIN/AVG, data hold, auto power off |
| Units | °C/°F |
| Supported probes | Type K and J |
| Low battery indicator | Yes |
| Drop resistance | Up to 1 m |
| Power supply | 3 × 1.5V battery (R03) |
| Dimensions | 120 × 53 × 28 mm |
| Weight | 60 g |
| Certifications | CE, UKCA |
