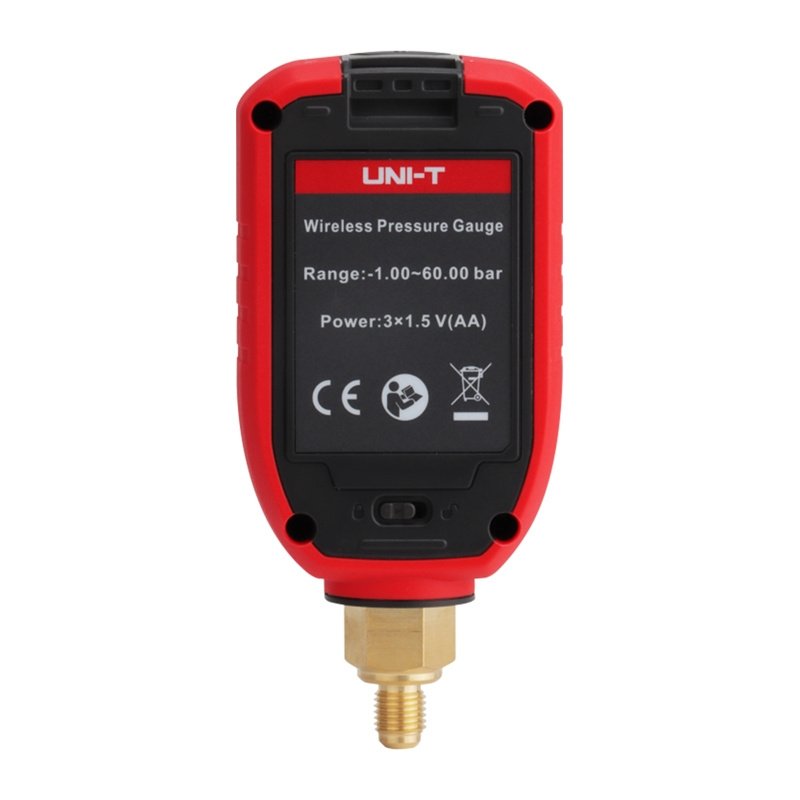

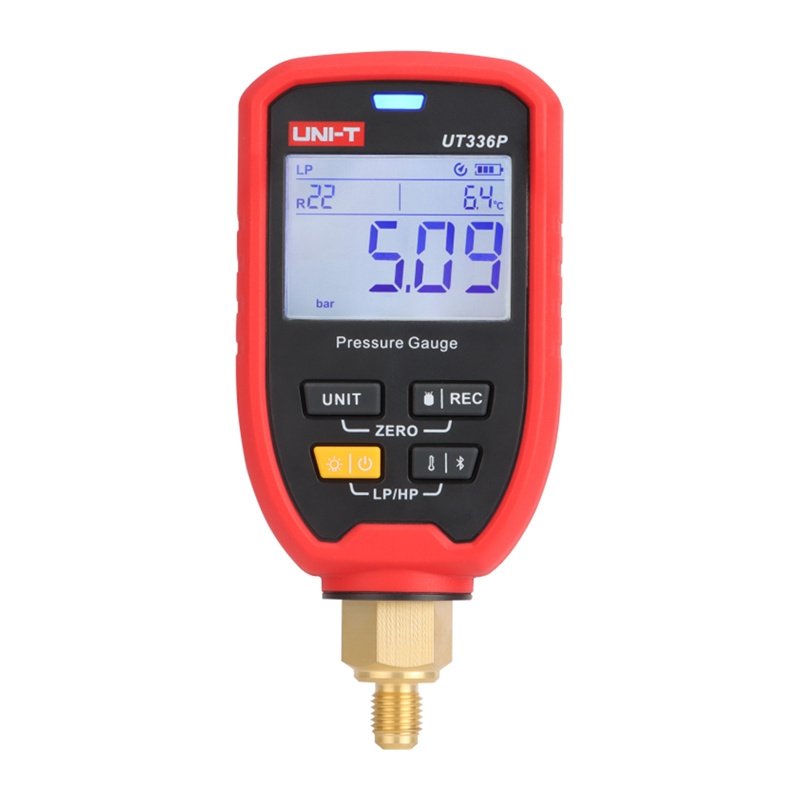

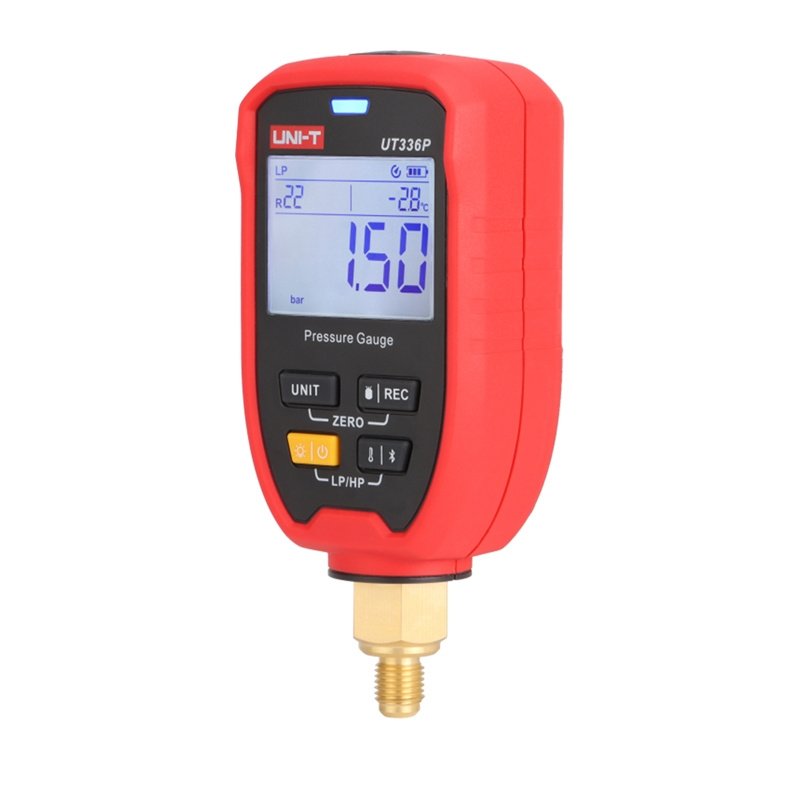

Uni-T UT336P Wireless Pressure Gauge
The Uni-T UT336P wireless pressure gauge is a tool designed for use with refrigeration systems and heat pumps. It enables accurate pressure measurement and long-term monitoring of system operating parameters, facilitating the diagnosis and servicing of HVAC systems.
Real-time system monitoring
The UT336P model allows for pressure measurement in multiple units and supports a wide range of refrigerants. Thanks to Bluetooth connectivity and a mobile app, you can analyze data in real time and check parameters such as superheat and subcooling (using a temperature probe). The ability to store up to 8,000 measurements and the option to operate offline are ideal for long-term monitoring.
Features to facilitate service work
The device offers high and low pressure alarms, an adjustable data logging interval, and a backlit screen, which improves user comfort. Built-in LED indicators show the operating status, and the rugged design with an IP54 rating allows the device to be used in various conditions.
Included in the set
- Wireless pressure gauge
- 3 AA batteries
- Carrying case
- Wrist strap
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT336P |
| Type | Wireless pressure gauge |
| Pressure range | -1 ~ 60 bar ±0.5% FS |
| Pressure units | bar, kg/cm², cmHg, psi, inHg, kPa, MPa |
| Temperature units | °C / °F |
| Data log | 8,000 measurements |
| Logging interval | 1 s ~ 1 h |
| Connectivity | Bluetooth (mobile app) |
| Supported media | 10 in the device / 90+ in the app |
| Features | Data Hold, data logging, high and low pressure alarms, LCD backlight, pressure zeroing, auto power off, firmware update |
| Temperature port | 3.5 mm (compatible with UT-T19) |
| Connection | 1/4" SAE |
| Protection rating | IP54 |
| Power supply | 3x AA batteries |
| Dimensions | 145 x 68 x 39 mm |
| Weight | 250 g |
| Certifications | CE, RoHS |
