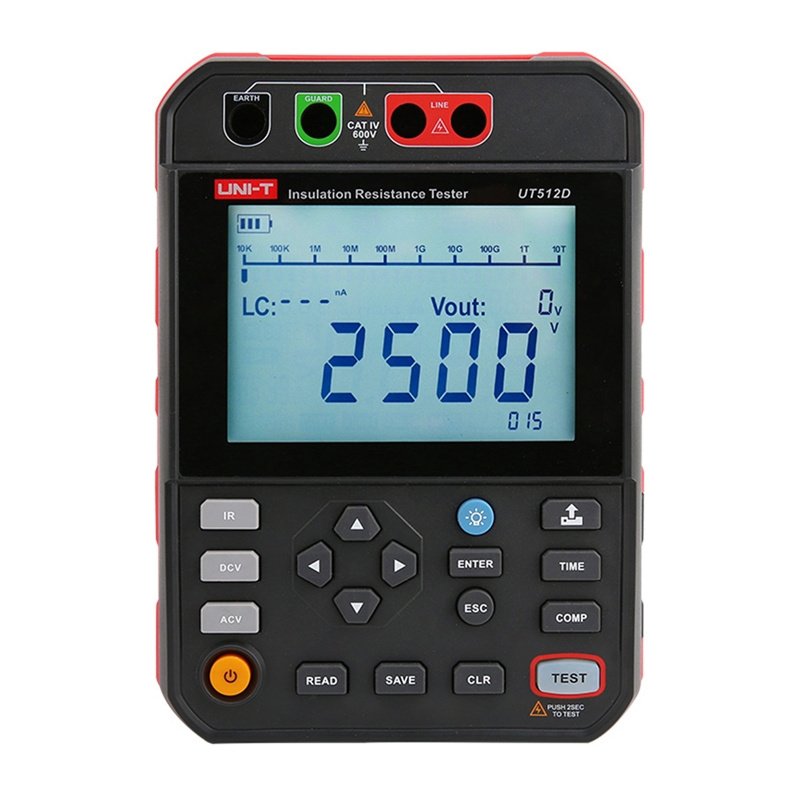

Uni-T UT512D High-Voltage Insulation Resistance Tester
The Uni-T UT512D High Voltage Insulation Resistance Tester is an advanced digital measuring device designed for use in demanding environments such as power generation, telecommunications, and industry. It supports test voltages up to 2500V (250V / 500V / 1000V / 2500V), enables PI and DAR measurements, and offers automatic discharge, high-voltage alarm, and data logging functions. Thanks to its wide measurement range and USB communication, it is ideal for both the installation and maintenance of electrical equipment.
Included
- Uni-T UT512D Insulation Resistance Tester
- Test leads (3 pcs.: red, black, green)
- USB cable
- User manual
- Carrying strap
- LR14 alkaline batteries (8 pcs.)
| Manufacturer | Uni-T |
|---|---|
| Model | UT512D |
| Test voltages | 250V / 500V / 1000V / 2500V |
| Maximum output voltage | up to 2.5 kV |
| Insulation resistance measurement | up to 249 GΩ (accurate) and up to 1.00 TΩ (indicative) |
| Short-circuit current measurement | approx. 3.5 mA |
| Data memory | up to 999 measurements |
| PC communication | via USB |
| Voltage category | CAT IV 600V |
| Power supply | 8 × LR14 alkaline batteries |
| Dimensions | 238 × 166 × 90.5 mm |
| Weight | approx. 1800 g (with batteries) |
| Certifications | CE, UKCA |
