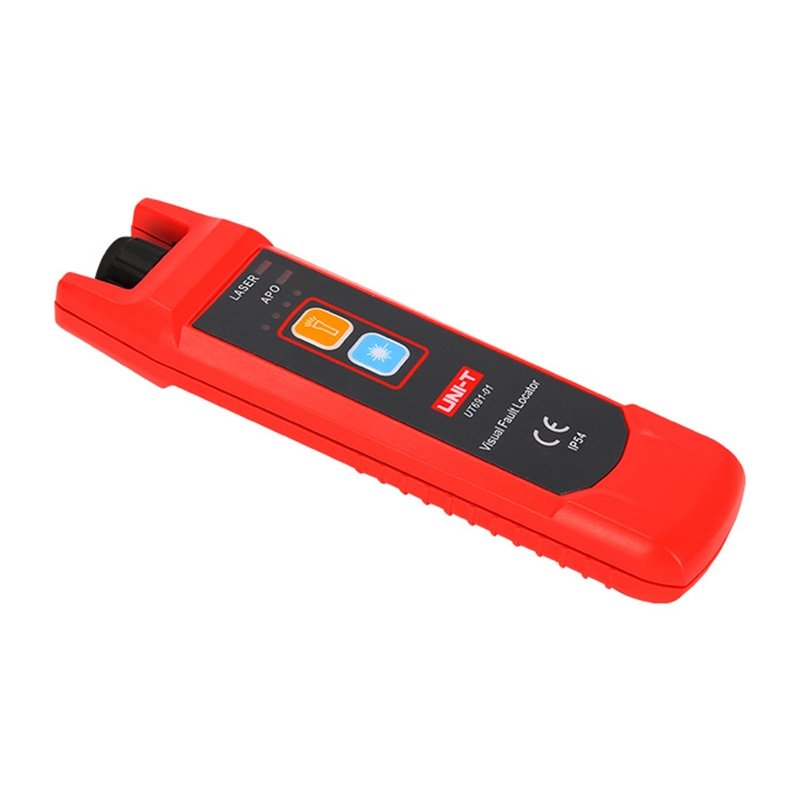

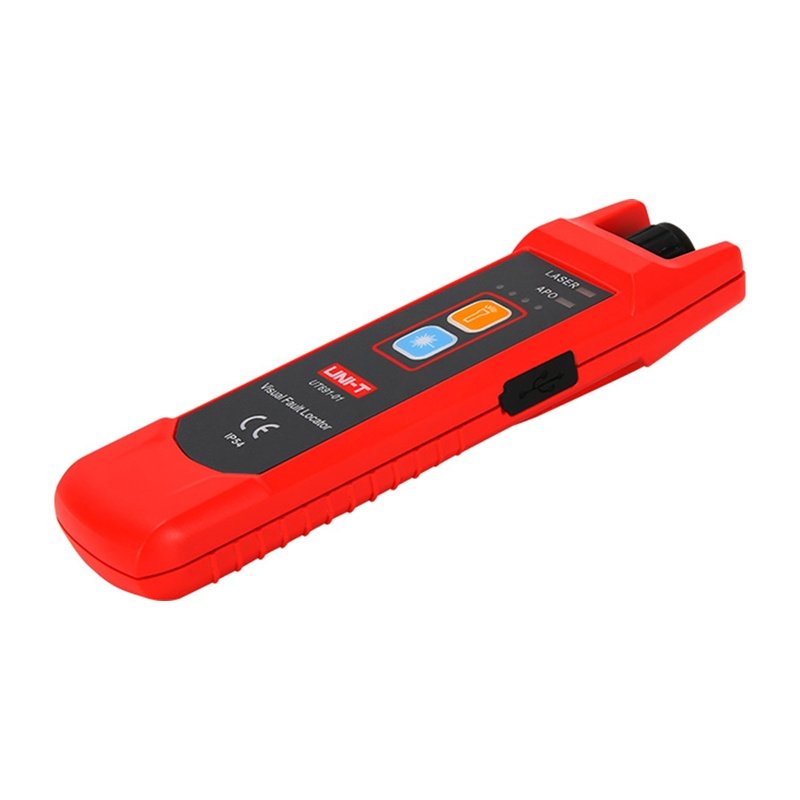

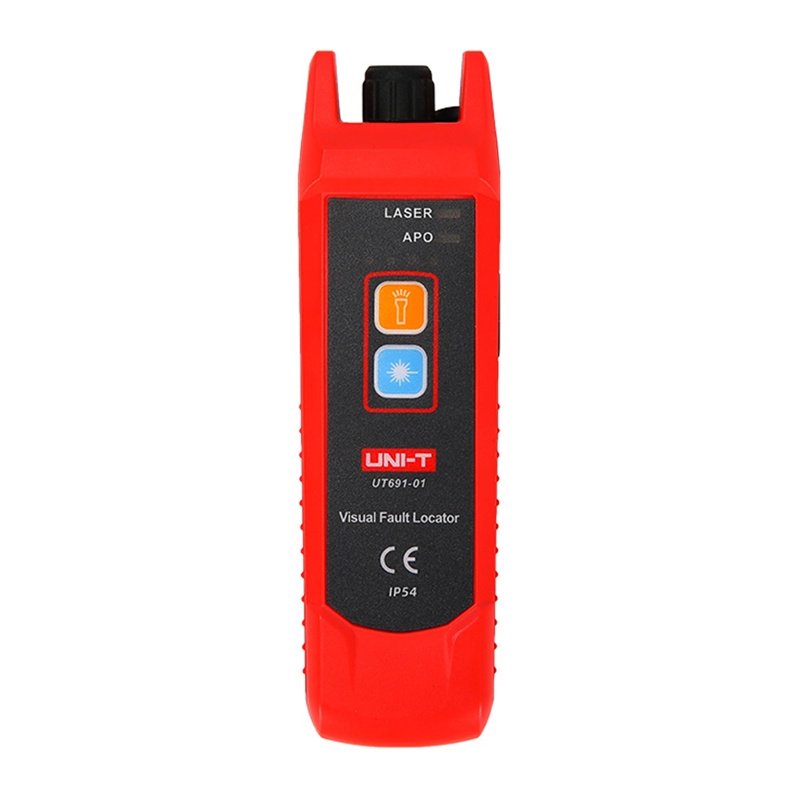

Uni-T UT691-01 Visual Fault Locator
The Uni-T UT691-01 is a portable visual fault locator designed to detect faults in optical fibers, identify fibers along their entire length, and perform maintenance work on optical installations. The device uses visible red light with a wavelength of 650 ± 10 nm and offers two laser operating modes, facilitating quick diagnostics in the field. Its compact housing, non-slip design, and IP54 protection rating make this model well-suited for daily work in the construction and maintenance of fiber-optic networks.
Effective fault location in shorter sections

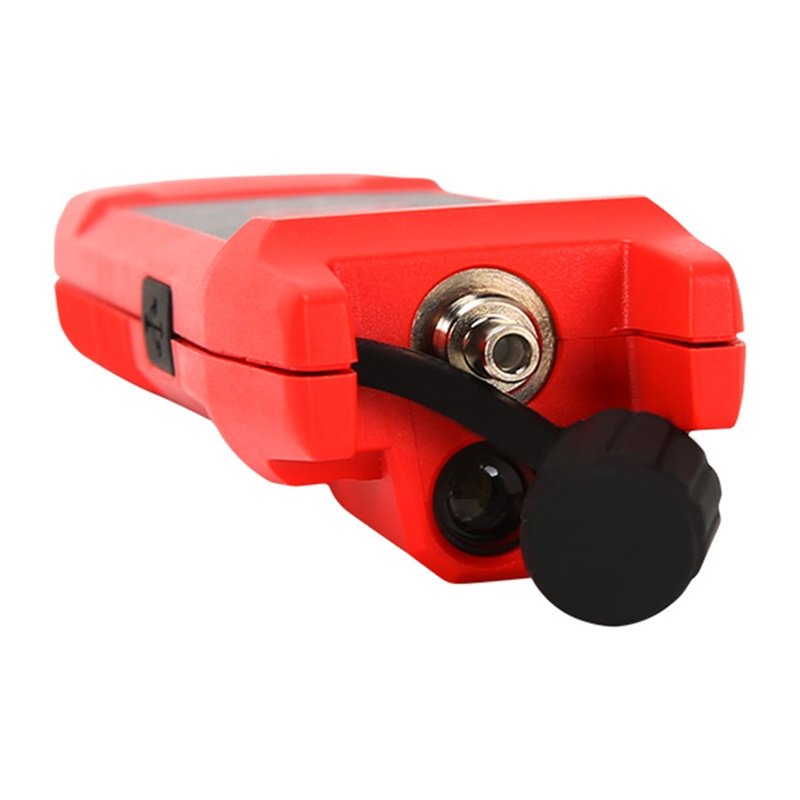

The UT691-01 model offers a laser output power of at least 1 mW and allows operation on fiber optic sections ranging from 2 to 3 km in length. The device is equipped with a universal 2.5 mm FC connector, which enhances ease of use for standard service applications. Continuous and pulse modes are available, making it easy to adapt the operating mode to specific tasks and measurement conditions.
Convenient operation and readiness for use
The locator uses a 3.7 V 1050 mAh lithium-polymer battery, which provides over 12 hours of operation. The device features a battery level indicator, an automatic shut-off function after 15 minutes, an LED flashlight, and resistance to drops from a height of 1 meter. Weighing 62 g and measuring 130 × 38 × 27 mm, the model remains convenient to carry and use on a daily basis.
Included in the set
- Locator
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT691-01 |
| Type | Visual fault locator |
| Laser output power | ≥1mW |
| Fiber optic range | 2~3km |
| Red light wavelength | 650 ± 10nm |
| Fiber optic adapter | Universal 2.5mm FC connector |
| Battery type | 3.7V 1050mAh lithium polymer battery |
| Battery life | 12h |
| Battery status indicator | 4 blue LEDs |
| Laser mode | Continuous |
| Laser mode | Pulsed |
| Charging voltage and current | DC 5V, <1A |
| Auto-off | 15 min, manually adjustable |
| Warning symbol | Yes |
| Warning | Yes |
| Button durability test | 5,000 times |
| Drop test | 1 m |
| Protection class | IP54 |
| LED flashlight | Yes |
| Color | Red and gray |
| Weight | 62 g |
| Dimensions | 130 mm x 38 mm x 27 mm |
| Certifications | CE, UKCA |
