Uni-T UT116A SMD tester

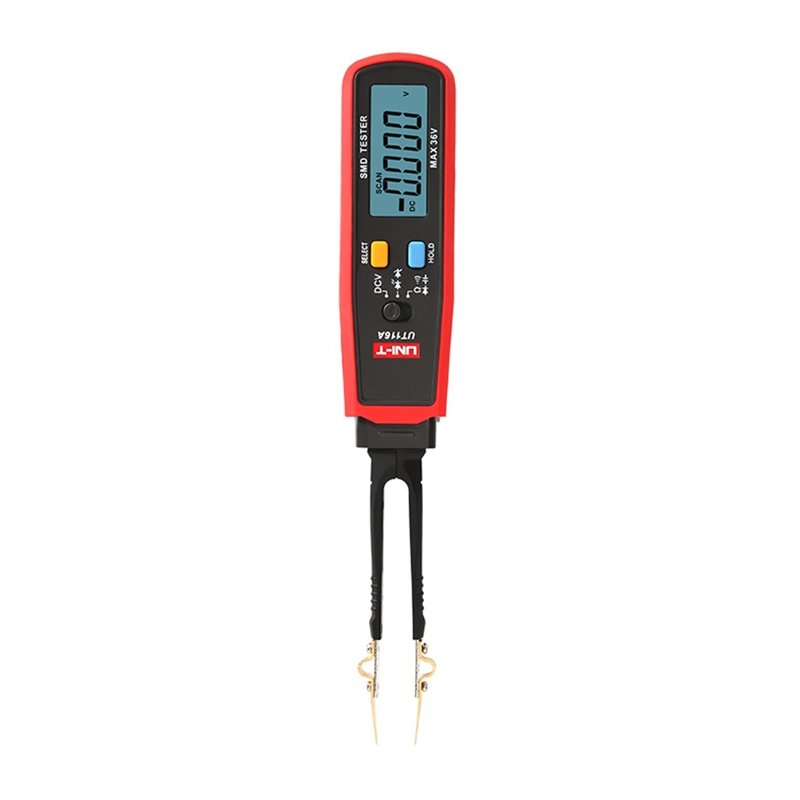

The Uni-T UT116A is a practical SMD tester in the form of a test probe, designed for quickly testing electronic components during assembly and maintenance. The device automatically recognizes resistors, capacitors, and diodes, which speeds up diagnostics and simplifies work with small SMD components. The 180° rotating design enhances user comfort and facilitates measurements of diodes and LEDs.
Quick measurement of key electronic components
The UT116A model allows for measuring resistance up to 30 MΩ, capacitance up to 30 mF, and DC voltage up to 36 V. The device also supports testing of diodes, LEDs, Zener diodes, and circuit continuity, making it ideal for repairs and inspections of electronic components. Automatic range switching, a clear 39 × 20 mm display, and an auto-off function enhance daily workflow, while the lightweight design weighing approximately 80 g makes the tester a convenient tool for electronics technicians and service professionals.
Included
- Tester
- 2 AAA batteries
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT116A |
| Product type | SMD tester |
| Maximum display reading | 3000 |
| Resistance measurement range | 30 MΩ |
| Capacitance measurement range | 30 mF |
| Diode test | 3 V |
| LED / Zener diode test | Approx. 21 V / 1 mA |
| Circuit continuity test | <30 Ω |
| DC voltage measurement range | 36 V |
| Functions | Automatic range switching, scan recognition, auto-off |
| Rotating probe range | 180° |
| Power supply | 2 × 1.5 V (R03 / AAA) |
| Display dimensions | 39 × 20 mm |
| Color | Red and gray |
| Weight | Approx. 80 g |
| Dimensions | 204 × 33 × 25 mm |
| Certifications | CE, UKCA |
